View MapPrice: £1750.00

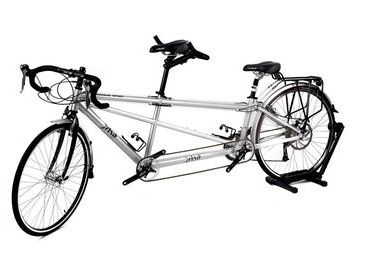

Orbit Pegasus Sport
The Pegasus Sport is the first model in our range with drop handlebars and Shimano road STI's for the pilot.
The frame is made for Orbit Tandems by Kinesis and is assembled by hand in our workshop in North Yorkshire. The Pegasus is responsive and easy to ride, the geometry gives it superb handling. The hubs and rims are available in 40 or 48 hole options and are also handbuilt by us. We recommend 48-spoke wheels for teams and luggage with over 160kg combined weight.
Our Orbit tandems are finished with components made by top quality manufacturers. The Pegasus comes with Shimano STI gearing, a Truvativ tandem chainset and Continental tyres as standard. So despite being our most affordable drop handlebar tandem the Pegasus is capable of being ladened to the gills and ridden long distances.
The frame is made for Orbit Tandems by Kinesis and is assembled by hand in our workshop in North Yorkshire. The Pegasus is responsive and easy to ride, the geometry gives it superb handling. The hubs and rims are available in 40 or 48 hole options and are also handbuilt by us. We recommend 48-spoke wheels for teams and luggage with over 160kg combined weight.
Our Orbit tandems are finished with components made by top quality manufacturers. The Pegasus comes with Shimano STI gearing, a Truvativ tandem chainset and Continental tyres as standard. So despite being our most affordable drop handlebar tandem the Pegasus is capable of being ladened to the gills and ridden long distances.
- Available in our 3 standard sizes
- Metallic silver finish
- Choice of tyre widths
- Disc brake front fork with corresponding disc brake & 203mm rotor adds £250
- Bar end shifter version available £1,575
- Weight in medium size, as pictured, 20.6kg

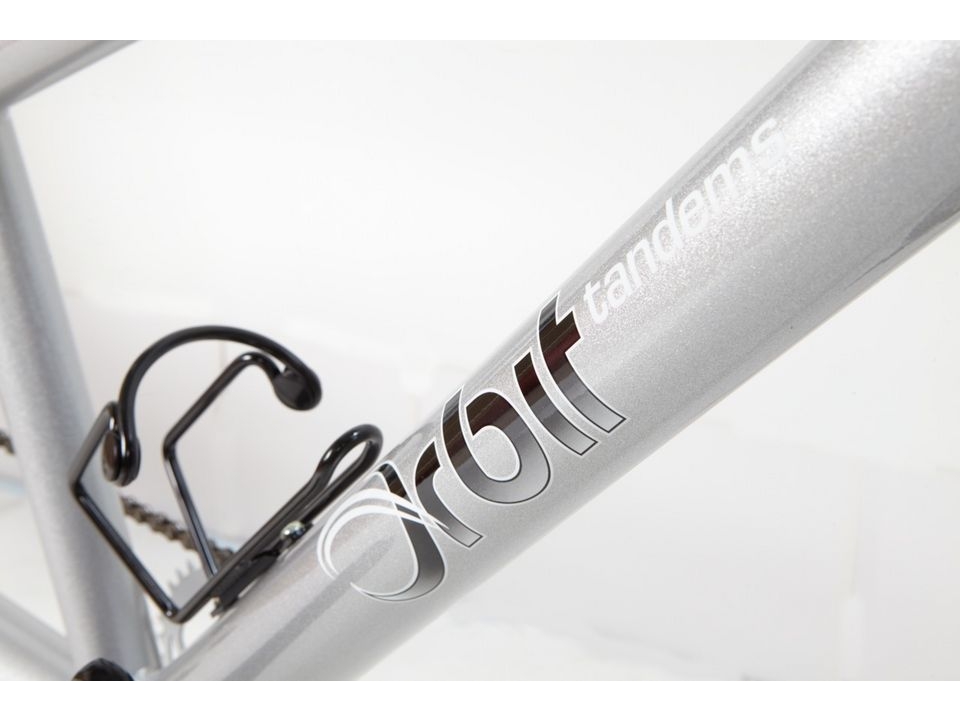

| Frame | Orbit Kinesis aluminium |
|---|---|
| Forks | Orbit full chromoly steel |
| Rear Derailleur | Shimano Deore |
| Front Derailleur | Shimano Tiagra with band adapter |
| Shifters | Shimano Sora 27 speed STI |
| Chainset (Pilot) | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive |
| Chainset (Stoker) | Truvativ tandem 5D 170mm crank length, 28/38/48 |
| Bottom Bracket (Pilot) | Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper |
| Bottom Bracket (Stoker) | Tange cartridge bearing 115mm 68mm shell, square taper |
| Chain (Crossover) | KMC 160 link |
| Chain (Rear) | Shimano HG53 9 speed |
| Cassette | Shimano Deore cassette 11/34 |
| Pedals (Pilot) | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups |
| Front Brake | Shimano Deore V brake with travel agent |

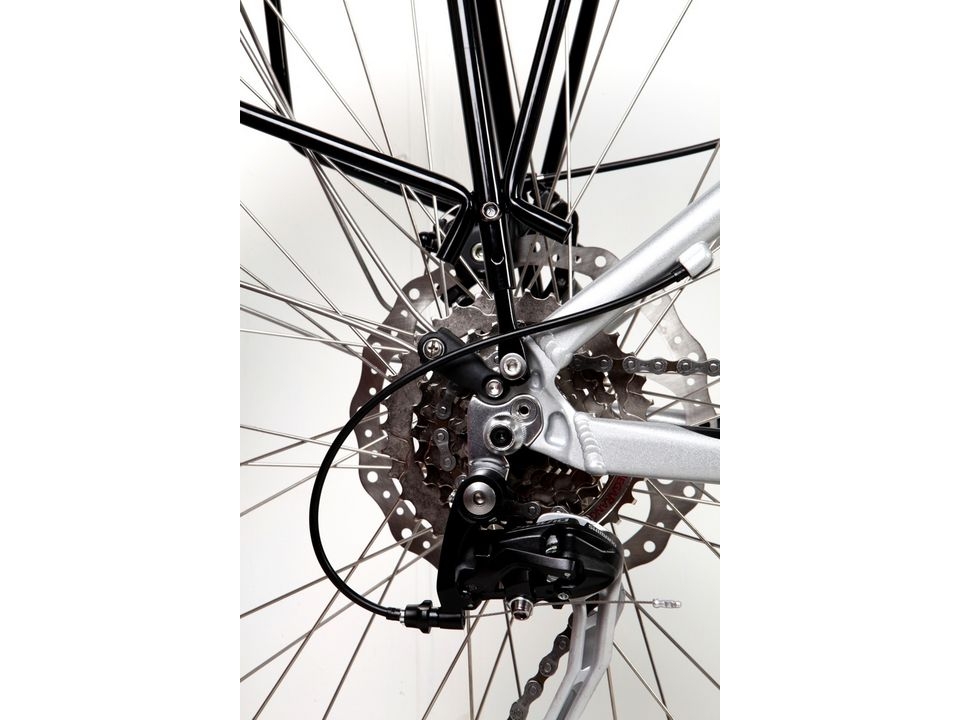

| Rear Brake | Bengal cable pull disc brake, with 203mm rotor |
| 3rd Brake | Shimano Deore V brake, controlled from the front handlebars with bar end friction shifter |
| Brake Levers | Incorporated into STI levers |
| Front Hub | Orbit tandem large flange, cartridge bearing |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD |
| Rims | Alex DH19, triple box section, eyeletted |
|---|---|
| Spokes | DT Swiss Alpine III triple butted stainless |
| Tyres | Continental Tour Ride 700c x 32c |
| Headset | Tange Thunda 1 1/8", reinforced bottom cup |
| Stem (Pilot) | Pro LT 31.8 |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm |

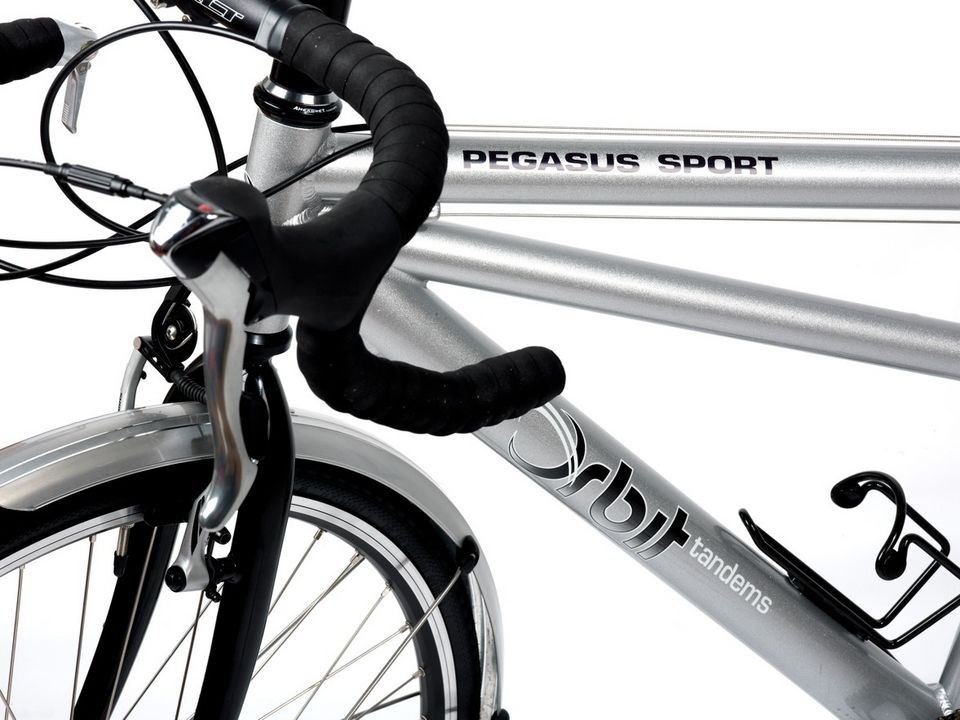

| Handlebars (Pilot) | Pro LT 31.8 44cm CTC |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width |

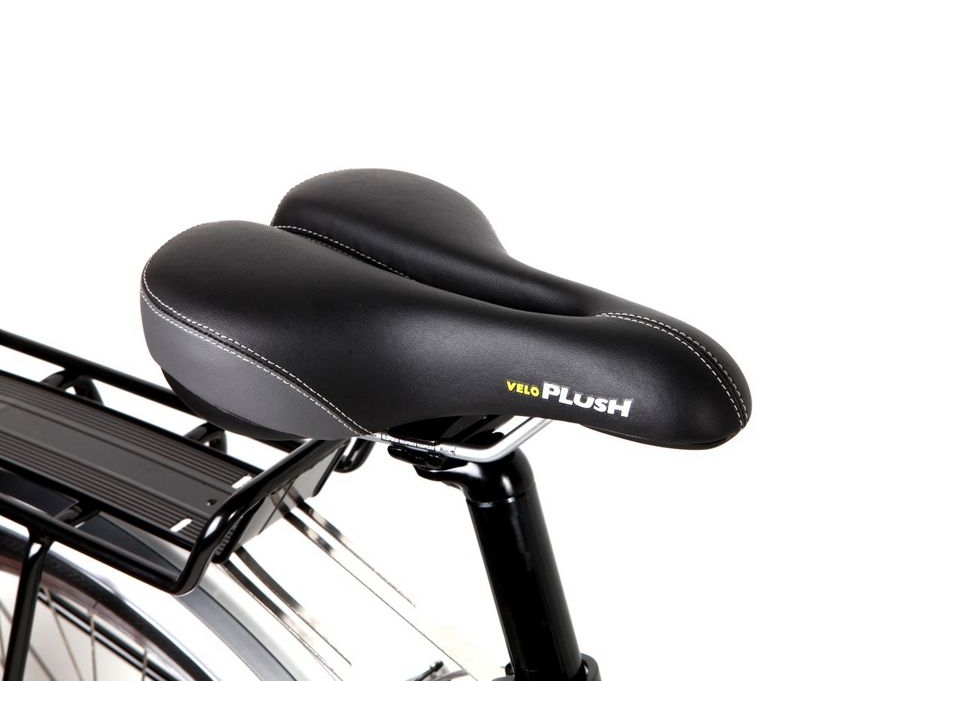

| Saddle (Pilot) | Velo Plush comfort touring |
| Saddle (Stoker) | Velo Plush comfort touring |
| Seatpost (Pilot) | Black alloy, 400mm x 30.9 |
| Seatpost (Stoker) | Black Kalloy 350mm x 30.9 suspension |
| Grips (Pilot) | Velo black cork bar tape |
| Grips (Stoker) | Velo black cork bar tape |
| Panner Rack (Rear) | Black alloy hollow 3 leg touring |
| Bottle Cages | 2 alloy |
| Mudguards | Silver with stainless steel fittings |
| Orbit Pegasus Range | |||||
| Sport | Pro | Tour | Race | Ultimate | |
|---|---|---|---|---|---|
| £1750.00 | £2000.00 | £2350.00 | £2750.00 | £4000.00 | |
| Frame | Orbit Kinesis aluminium | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium |
| Forks | Orbit full chromoly steel | Orbit full chromoly steel | Orbit full chromoly steel | Orbit full chromoly steel | Orbit full chromoly steel |
| Rear Derailleur | Shimano Deore | Shimano Deore | Shimano Deore | Shimano XT or Ultegra | Shimano XT or Ultegra |
| Front Derailleur | Shimano Tiagra with band adapter | Shimano Tiagra with band adapter | Shimano Tiagra with band adapter | Shimano Ultegra | Shimano Ultegra |
| Shifters | Shimano Sora 27 speed STI | Shimano Sora 27 speed STI | Shimano Sora 27 speed STI | Shimano 105 speed STI (5703) | Shimano Ultegra 10 speed STI (6703) |
| Chainset (Pilot) | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Truvativ tandem Elita 175mm crank length, 38 tooth crossover drive | Shimano Ultegra HollowTech II tandem 175mm or 170mm, 30/39/52. 40T crossover drive |
| Chainset (Stoker) | Truvativ tandem 5D 170mm crank length, 28/38/48 | Truvativ tandem 5D 170mm crank length, 28/38/48 | Truvativ tandem 5D 170mm crank length, 28/38/48 | Truvativ tandem Elita 170mm crank length, 30/39/52 | Shimano Ultegra HollowTech II tandem 170mm 40T crossover drive |
| Bottom Bracket (Pilot) | Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper | Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper | Alloy eccentric & Shimano UN55 115mm 68mm shell, square taper | Alloy eccentric & Truvativ GXP external cups | Ultegra external cups |
| Bottom Bracket (Stoker) | Tange cartridge bearing 115mm 68mm shell, square taper | Tange cartridge bearing 115mm 68mm shell, square taper | Shimano UN55 115mm 68mm shell, square taper | Truvativ GXP external cups | Ultegra external cups |
| Chain (Crossover) | KMC 160 link | KMC nickel plated 160 link | KMC 160 link | KMC nickel plated 160 link | KMC nickel plated 160 link |
| Chain (Rear) | Shimano HG53 9 speed | Shimano HG53 9 speed | Shimano HG53 9 speed | Shimano HG94 10 speed or Ultegra | Shimano HG94 10 speed or Ultegra |
| Cassette | Shimano Deore cassette 11/34 | Shimano Deore cassette 11/34 | Shimano Deore cassette 11/34 | Shimano SLX 11/34 or 105 road ratios | Shimano XT 11/34 or Ultegra road ratios |
| Pedals (Pilot) | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups |
| Front Brake | Shimano Deore V brake with travel agent | Shimano Deore V brake with travel agent | Shimano Deore V brake with travel agent | Avid SD7 V brake | Avid SD7 V brake |
| Rear Brake | Bengal cable pull disc brake, with 203mm rotor | Bengal cable pull disc brake, with 203mm rotor | Bengal cable pull disc brake, with 203mm rotor | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor |
| 3rd Brake | Shimano Deore V brake, controlled from the front handlebars with bar end friction shifter | Shimano Deore V brake, controlled from the front handlebars with bar end friction shifter | Shimano Deore V brake, controlled from the front handlebars with bar end friction shifter | Avid SD7 V brake, controlled from the front handlebars with bar end friction shifter | Avid SD7 V brake, controlled from the front handlebars with bar end friction shifter |
| Brake Levers | Incorporated into STI levers | Incorporated into STI levers | Incorporated into STI levers | Incorporated into STI levers | Incorporated into STI levers |
| Front Hub | Orbit tandem large flange, cartridge bearing | Orbit tandem large flange, cartridge bearing | Shimano HF08 large flange tandem 48 hole | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings | Rolf Prima Tandem |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD | Shimano HF08 large flange tandem, 145mm OLD, 48 hole, 6 bolt disc | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings, 6 bolt disc, 145mm OLD | Rolf Prima Tandem |
| Rims | Alex DH19, triple box section, eyeletted | Alex DH19, triple box section, eyeletted | Alex DH19, triple box section, eyeletted | Alex G6000 deep section aero | |
| Spokes | DT Swiss Alpine III triple butted stainless | DT Swiss Alpine III triple butted stainless | DT Swiss Alpine III triple butted stainless | DT Swiss Alpine III triple butted stainless | |
| Tyres | Continental Tour Ride 700c x 32c | Continental Tour Ride 700c x 32c | Schwalbe Marathon Plus, 26 x 1.75" or 700 x 35c | Continental Gator Skins | Continental Gator Skins 28c |
| Headset | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup | Hope |
| Stem (Pilot) | Pro LT 31.8 | Pro LT 31.8 | Pro LT 31.8 | Pro LT 31.8 | Hope |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm |
| Handlebars (Pilot) | Pro LT 31.8 44cm CTC | Pro LT 31.8 44cm CTC | Pro LT 31.8 44cm CTC | Pro LT 31.8 44cm CTC | Pro LT 31.8 44cm CTC |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser | Black alloy stoker bars, 25.4 clamp size, 49cm external width | Black alloy stoker bars, 25.4 clamp size, 49cm external width |
| Saddle (Pilot) | Velo Plush comfort touring | Velo Plush comfort touring | Brooks B17 leather gents | Serfas Vistoso 135mm wide | Selle Italia Man Gel Flow |
| Saddle (Stoker) | Velo Plush comfort touring | Velo Plush comfort touring | Brooks B17 leather ladies | Serfas Lady Curva 165mm wide | Selle Italia Man Gel Flow |
| Seatpost (Pilot) | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 |
| Seatpost (Stoker) | Black Kalloy 350mm x 30.9 suspension | Black Kalloy 350mm x 30.9 suspension | Black Kalloy 350mm x 30.9 suspension | Black Kalloy 350mm x 30.9 suspension | Cane Creek Thudbuster ST 30.9 |
| Grips (Pilot) | Velo black cork bar tape | Velo black cork bar tape | Velo black cork bar tape | Velo black cork bar tape | Velo black cork bar tape |
| Grips (Stoker) | Velo black cork bar tape | Velo black cork bar tape | Velo black cork bar tape with under bar gel | Velo black cork bar tape & under bar gel | Velo black cork bar tape & under bar gel |
| Panner Rack (Front) | Tubus Tara | ||||
| Panner Rack (Rear) | Black alloy hollow 3 leg touring | Black alloy hollow 3 leg touring | Tubus Cargo | Tubus Fly | |
| Bottle Cages | 2 alloy | 2 alloy | 3 alloy | 2 Elite | 2 Elite |
| Mudguards | Silver with stainless steel fittings | Silver with stainless steel fittings | Silver with stainless steel fittings | SKS with stainless steel fittings | |
| Extras | |||||
