5 days per week, including a weekend day, opening hours vary according to the time of the year, please review our opening times and info on tandems.co.uk for further details.
Price: £1750.00

Orbit Pegasus Pro

Click to Expand: Orbit Pegasus Pro
Click to Expand: Orbit Pegasus Pro
Click to Expand: Orbit Pegasus Pro
Click to Expand: Orbit Pegasus Pro
Click to Expand: Orbit Pegasus Pro
The Pegasus Pro is the first model in our drop bar range to use the lightweight, fully-butted Kinesis frame.

The frame is made for Orbit Tandems by Kinesis and then the Pro is assembled by hand in our workshop in North Yorkshire. The Pegasus is responsive and easy to ride, the geometry gives it superb handling. The hubs and rims are available in 40 or 48 hole options and are also handbuilt by us. We recommend 48-spoke wheels for teams and luggage with over 160kg combined weight.

Our Orbit tandems are finished with components made by top quality manufacturers. The Pegasus comes with Shimano STI gearing, a Truvativ tandem chainset and Continental tyres as standard.

  • Available in our 3 standard sizes
  • Choice of tyre widths
  • Gloss black or metallic blue
  • Disc brake front fork with corresponding disc brake & 203mm rotor adds £100
  • 26" or 700c wheel options

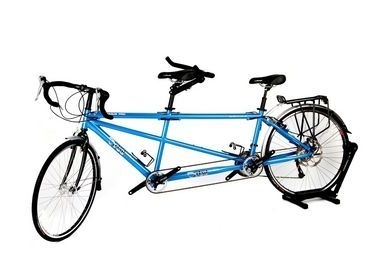

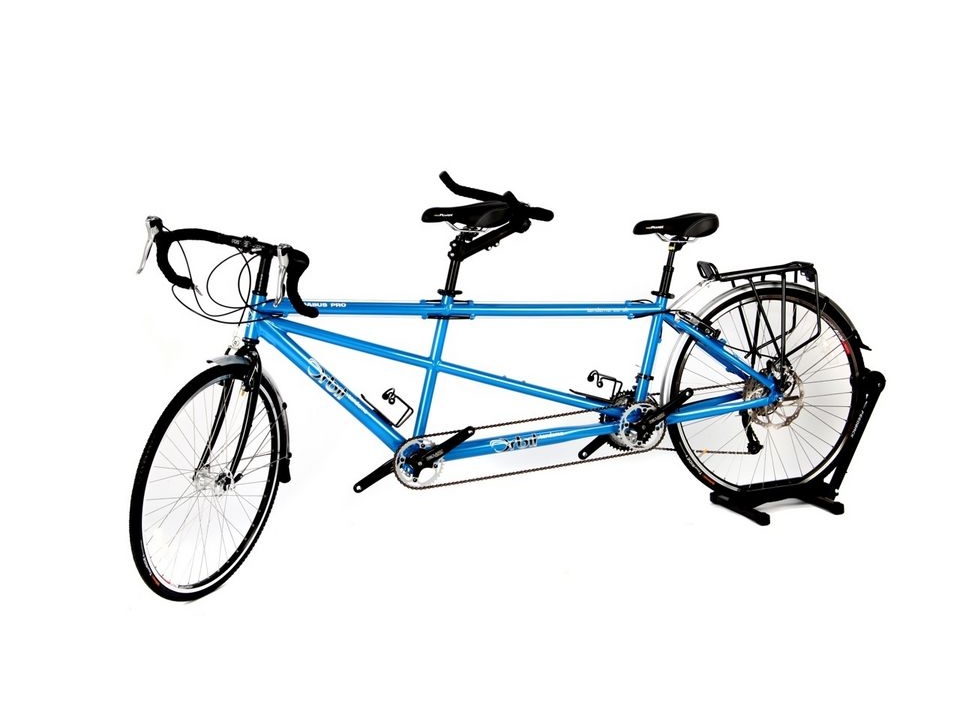

  • Weight in medium size, as pictured, 20kg

Frame Orbit Kinesis fully butted lightweight aluminium
Forks Orbit full chromoly steel
Rear Derailleur Shimano Deore
Front Derailleur Shimano Tiagra with band adapter
Shifters Shimano Sora 27 speed STI

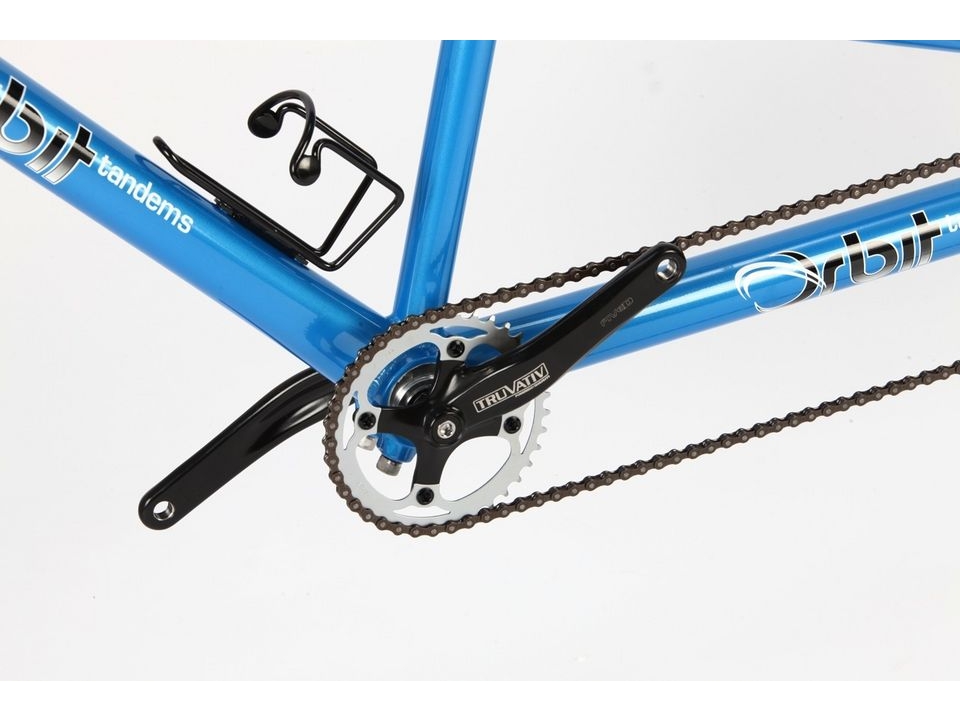

Chainset (Pilot) Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive
Chainset (Stoker) Truvativ tandem 5D 170mm crank length, 28/38/48
Bottom Bracket (Pilot) Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper
Bottom Bracket (Stoker) Tange cartridge bearing 115mm 68mm shell, square taper
Chain (Crossover) KMC nickel plated 160 link
Chain (Rear) Shimano HG53 9 speed
Cassette Shimano Deore cassette 11/34
Pedals (Pilot) Alloy touring with strapless toe cups
Pedals (Stoker) Alloy touring with strapless toe cups
Front Brake Avid SD5 V brake with travel agent
Rear Brake Bengal cable pull disc brake, with 203mm rotor
3rd Brake Avid SD5 V brake, controlled from the front handlebars with bar end friction shifter

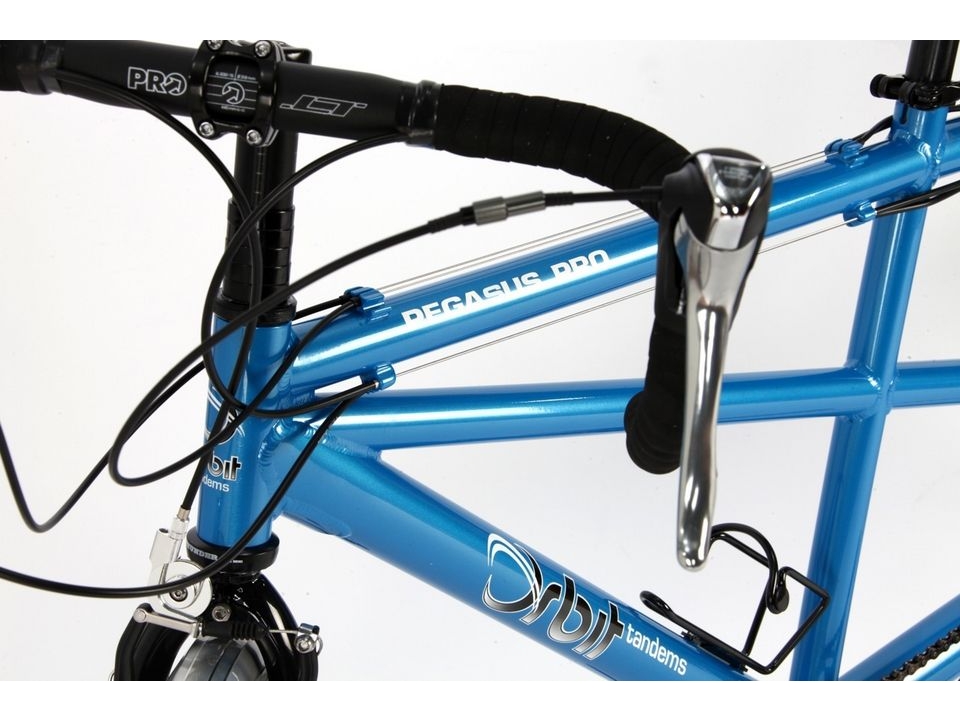

Brake Levers Incorporated into STI levers
Front Hub Orbit tandem large flange, cartridge bearing
Rear Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD
Rims Alex DH19, triple box section, eyeletted
Spokes DT Swiss Alpine III triple butted stainless
Tyres Schwalbe Marathon 700 x 32c
Headset Tange Thunda 1 1/8", reinforced bottom cup
Stem (Pilot) NVO adjustable
Stem (Stoker) Orbit adjustable, 160mm to 200mm
Handlebars (Pilot) Pro LT 31.8 44cm CTC
Handlebars (Stoker) Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser
Saddle (Pilot) Velo Plush comfort touring
Saddle (Stoker) Velo Plush comfort touring
Seatpost (Pilot) Black alloy, 400mm x 30.9
Seatpost (Stoker) Black Kalloy 350mm x 30.9 suspension
Grips (Pilot) Velo black cork bar tape
Grips (Stoker) Velo black cork bar tape
Panner Rack (Rear) Black alloy hollow 3 leg touring
Bottle Cages 2 alloy
Mudguards Silver with stainless steel fittings
Orbit Pegasus Range
Pro Tour
£1750.00 £2300.00
Frame Orbit Kinesis fully butted lightweight aluminium Orbit Kinesis fully butted lightweight aluminium
Forks Orbit full chromoly steel Orbit full chromoly steel disc
Rear Derailleur Shimano Deore Shimano Deore
Front Derailleur Shimano Tiagra with band adapter Shimano Tiagra with band adapter
Shifters Shimano Sora 27 speed STI Shimano Sora 27 speed STI
Chainset (Pilot) Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive Truvativ tandem Firex 175mm crank length, 38 tooth crossover drive
Chainset (Stoker) Truvativ tandem 5D 170mm crank length, 28/38/48 Truvativ tandem Firex 170mm crank length, 26/36/48
Bottom Bracket (Pilot) Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper Alloy eccentric & Truvativ GXP external cups
Bottom Bracket (Stoker) Tange cartridge bearing 115mm 68mm shell, square taper Truvativ GXP external cups
Chain (Crossover) KMC nickel plated 160 link KMC 160 link
Chain (Rear) Shimano HG53 9 speed Shimano HG53 9 speed
Cassette Shimano Deore cassette 11/34 Shimano Deore cassette 11/34
Pedals (Pilot) Alloy touring with strapless toe cups Alloy touring with strapless toe cups
Pedals (Stoker) Alloy touring with strapless toe cups Alloy touring with strapless toe cups
Front Brake Avid SD5 V brake with travel agent Bengal cable pull disc brake, with 203mm rotor
Rear Brake Bengal cable pull disc brake, with 203mm rotor Bengal cable pull disc brake, with 203mm rotor
3rd Brake Avid SD5 V brake, controlled from the front handlebars with bar end friction shifter Avid SD5 V brake, controlled from the front handlebars with bar end friction shifter
Brake Levers Incorporated into STI levers Incorporated into STI levers
Front Hub Orbit tandem large flange, cartridge bearing Orbit tandem large flange, cartridge bearing, 6 bolt disc
Rear Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD Shimano HF08 large flange tandem, 145mm OLD, 48 hole, 6 bolt disc
Rims Alex DH19, triple box section, eyeletted Alex DH19, triple box section, eyeletted
Spokes DT Swiss Alpine III triple butted stainless DT Swiss Alpine III triple butted stainless
Tyres Schwalbe Marathon 700 x 32c Schwalbe Marathon Dureme Tandem, 26" x 2.0" or 700 x 40c
Headset Tange Thunda 1 1/8", reinforced bottom cup Tange Thunda 1 1/8", reinforced bottom cup
Stem (Pilot) NVO adjustable NVO adjustable
Stem (Stoker) Orbit adjustable, 160mm to 200mm Orbit adjustable, 160mm to 200mm
Handlebars (Pilot) Pro LT 31.8 44cm CTC Pro LT 31.8 44cm CTC
Handlebars (Stoker) Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser
Saddle (Pilot) Velo Plush comfort touring Brooks B17 leather gents
Saddle (Stoker) Velo Plush comfort touring Brooks B17 leather ladies
Seatpost (Pilot) Black alloy, 400mm x 30.9 Black alloy, 400mm x 30.9
Seatpost (Stoker) Black Kalloy 350mm x 30.9 suspension Black Kalloy 350mm x 30.9 suspension
Grips (Pilot) Velo black cork bar tape Velo black cork bar tape
Grips (Stoker) Velo black cork bar tape Velo black cork bar tape with under bar gel
Panner Rack (Front)
-
Tubus Tara
Panner Rack (Rear) Black alloy hollow 3 leg touring Tubus Cargo
Bottle Cages 2 alloy 3 alloy
Mudguards Silver with stainless steel fittings Silver with stainless steel fittings
