View MapPrice: £2100.00

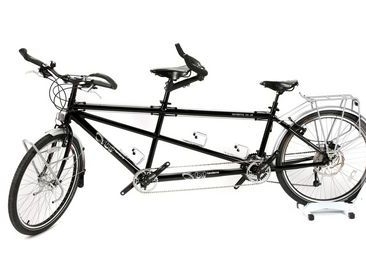

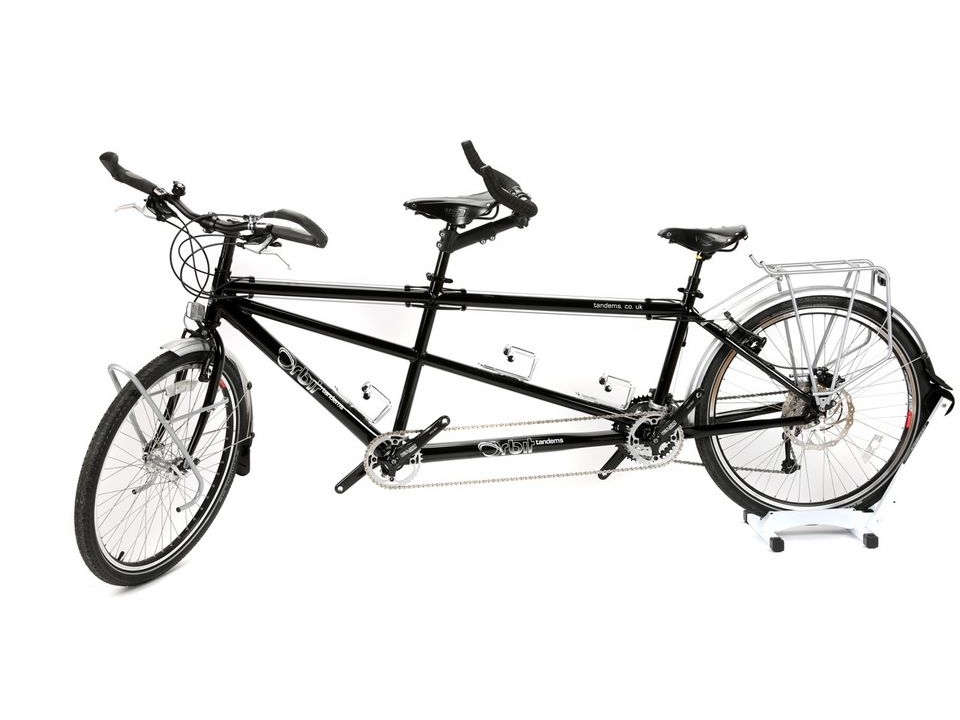

Orbit Routier Tour
The Routier Tour is one of our newer models.
The Tour is built with the serious tourist in mind, using the same top quality frame as the Sport. It is finished with the most serviceable hubs on the market, really puncture resistant Schwalbe Tandem tyres, Brooks leather touring saddles designed for distance riding and Tubus pannier racks front & rear.
Built in North Yorkshire, and finished with top quality components the Tour makes a super expedition tandem, whether riding in the UK or further afield.
48-spoke wheels are fitted as standard, and registering the Tubus racks extends their guarantee to 30 years.
The Tour is built with the serious tourist in mind, using the same top quality frame as the Sport. It is finished with the most serviceable hubs on the market, really puncture resistant Schwalbe Tandem tyres, Brooks leather touring saddles designed for distance riding and Tubus pannier racks front & rear.
Built in North Yorkshire, and finished with top quality components the Tour makes a super expedition tandem, whether riding in the UK or further afield.
48-spoke wheels are fitted as standard, and registering the Tubus racks extends their guarantee to 30 years.
- Choice of gear ratios available
- Available in our 3 standard sizes
- Gloss black or metallic blue finish
- Disc brake front fork with corresponding disc brake & 203mm rotor adds £250
- Wheels option - 26" or 700c
- Choice of tyre widths
- XT gearing option available add £150
- Weight in medium size, as pictured, 22.3kg
| Frame | Orbit Kinesis fully butted lightweight aluminium |
|---|---|
| Forks | Orbit full chromoly steel |
| Rear Derailleur | Shimano Deore |
| Front Derailleur | Shimano Deore |
| Shifters | Shimano Deore 27 speed STI |
| Chainset (Pilot) | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive |
| Chainset (Stoker) | Truvativ tandem 5D 170mm crank length, 28/38/48 |
| Bottom Bracket (Pilot) | Alloy eccentric & Shimano UN55 115mm 68mm shell, square taper |
| Bottom Bracket (Stoker) | Shimano UN55 115mm 68mm shell, square taper |
| Chain (Crossover) | KMC 160 link nickel plated |
| Chain (Rear) | Shimano HG53 9 speed |
| Cassette | Shimano Deore cassette 11/34 |
| Pedals (Pilot) | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups |
| Front Brake | Shimano Deore V brake |
| Rear Brake | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor |
| 3rd Brake | Shimano Deore V brake, controlled from the front handlebars with Shimano TX50 friction lever |
| Brake Levers | Shimano V brake, incorporated into STI levers |
| Front Hub | Shimano HF08 large flange tandem 48 hole |

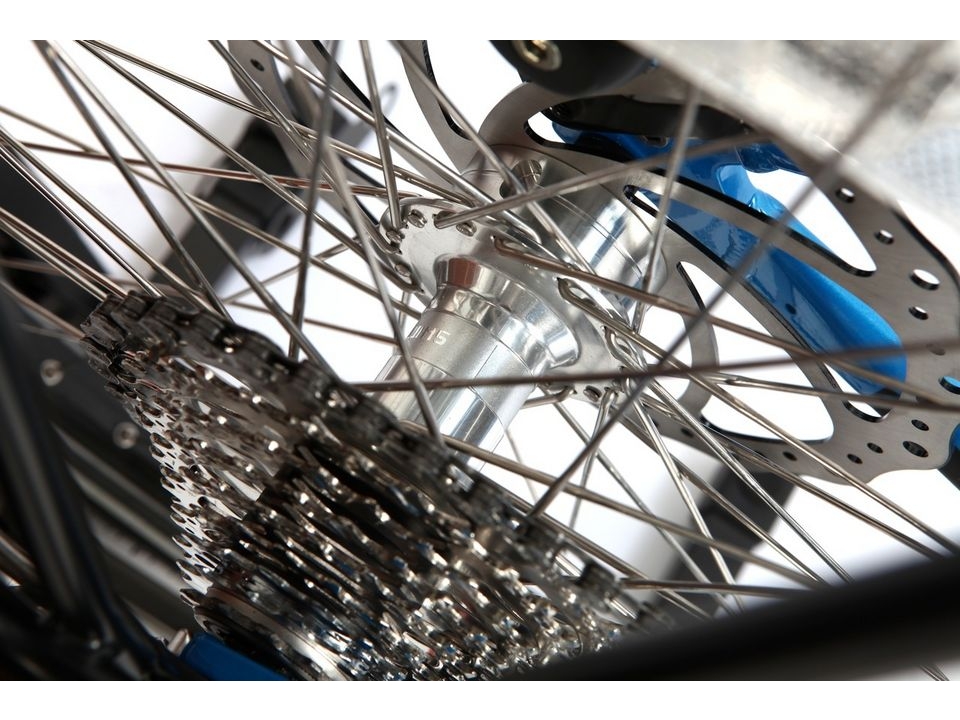

| Rear Hub | Shimano HF08 large flange tandem, 145mm OLD, 48 hole, 6 bolt disc |
| Rims | Alex DH19, triple box section, eyeletted |
| Spokes | DT Swiss Alpine III triple butted stainless |
|---|---|
| Tyres | Schwalbe Marathon Dureme Tandem, 26 x 2.0" |
| Headset | Tange Thunda 1 1/8", reinforced bottom cup |
| Stem (Pilot) | Black alloy NVO adjustable |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm |
| Handlebars (Pilot) | Black butted alloy riser, 25.4 clamp size |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser |
| Saddle (Pilot) | Brooks B17 leather gents |
| Saddle (Stoker) | Brooks B17 leather ladies |
| Seatpost (Pilot) | Black alloy, 400mm x 30.9 |
| Seatpost (Stoker) | Black Kalloy 350mm x 30.9 suspension |
| Grips (Pilot) | Ergon GP5 integrated grip & bar ends |
| Grips (Stoker) | Velo black cork bar tape |

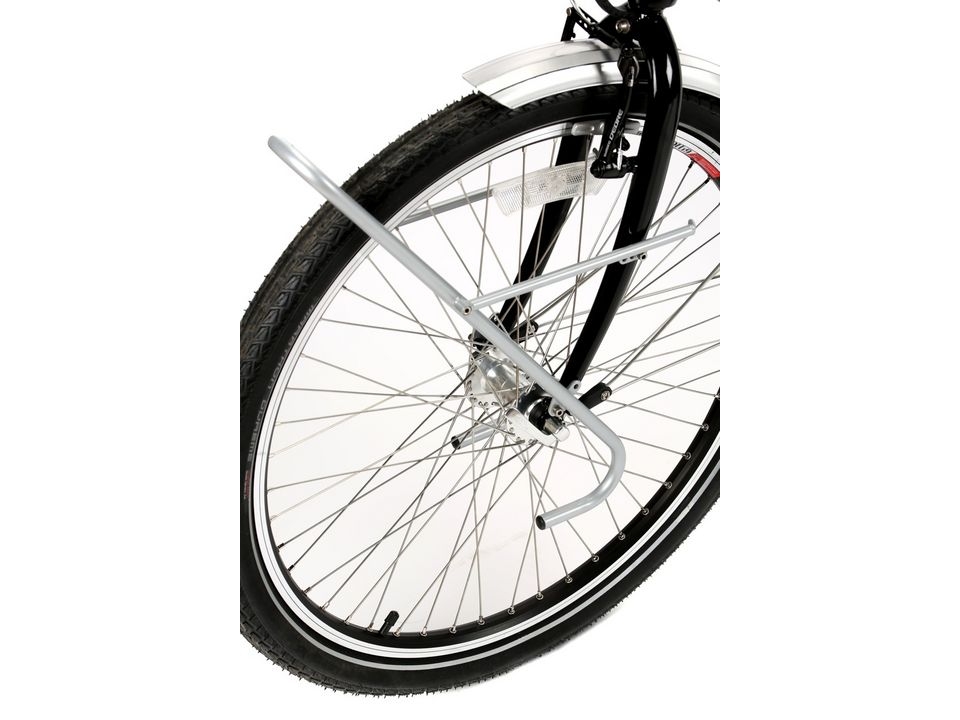

| Panner Rack (Front) | Tubus Tara |

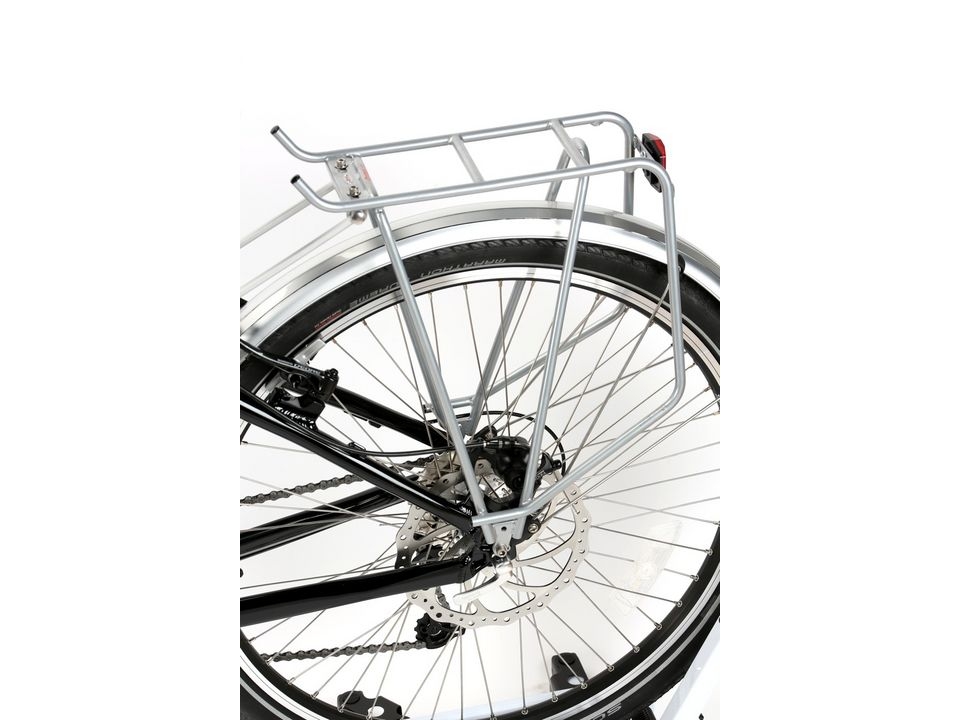

| Panner Rack (Rear) | Tubus Cargo |
| Bottle Cages | 3 alloy |
| Mudguards | Silver with stainless steel fittings |
| Orbit Routier Range | ||||
| Sport | Tour | Pro | Ultimate | |
|---|---|---|---|---|
| £1750.00 | £2100.00 | £2200.00 | £2750.00 | |
| Frame | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium | Orbit Kinesis fully butted lightweight aluminium |
| Forks | Orbit full chromoly steel | Orbit full chromoly steel | Orbit full chromoly steel | Orbit full chromoly steel |
| Rear Derailleur | Shimano Deore | Shimano Deore | Shimano XT | Shimano XT |
| Front Derailleur | Shimano Deore | Shimano Deore | Shimano XT | Shimano XT |
| Shifters | Shimano Deore 27 speed STI | Shimano Deore 27 speed STI | Shimano XT 27 speed shift levers | Shimano XT 27 speed shift levers |
| Chainset (Pilot) | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Truvativ tandem 5D 175mm crank length, 38 tooth crossover drive | Middleburn tandem 180/175/170mm crank lengths, 36 or 38 tooth crossover drive |
| Chainset (Stoker) | Truvativ tandem 5D 170mm crank length, 28/38/48 | Truvativ tandem 5D 170mm crank length, 28/38/48 | Truvativ tandem 5D 170mm crank length, 28/38/48 | Middleburn tandem 175/170/165/160mm crank lengths, with 24/36/48 rings from T.A. (other ratios available) |
| Bottom Bracket (Pilot) | Alloy eccentric & Tange cartridge bearing 115mm 68mm shell, square taper | Alloy eccentric & Shimano UN55 115mm 68mm shell, square taper | Alloy eccentric & Shimano UN55 115mm 68mm shell, square taper | Alloy eccentric & Shimano UN55 115mm 68mm shell, square taper |
| Bottom Bracket (Stoker) | Tange cartridge bearing 115mm 68mm shell, square taper | Shimano UN55 115mm 68mm shell, square taper | Shimano UN55 115mm 68mm shell, square taper | Shimano UN55 115mm 68mm shell, square taper |
| Chain (Crossover) | KMC 160 link | KMC 160 link nickel plated | KMC nickel plated 160 link | KMC nickel plated 160 link |
| Chain (Rear) | Shimano HG53 9 speed | Shimano HG53 9 speed | Shimano HG73 9 speed | Shimano HG73 9 speed |
| Cassette | Shimano Deore cassette 11/34 | Shimano Deore cassette 11/34 | Shimano XT cassette 11/34 | Shimano XT cassette 11/34 |
| Pedals (Pilot) | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups | Alloy touring with strapless toe cups |
| Front Brake | Shimano Deore V brake | Shimano Deore V brake | Shimano Deore V brake | Shimano Deore V brake |
| Rear Brake | Bengal cable pull disc brake, with 203mm rotor | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor | Bengal or Avid BB7 cable pull disc brake, with 203mm rotor |
| 3rd Brake | Shimano Deore V brake, controlled from the front handlebars with Shimano TX50 friction lever | Shimano Deore V brake, controlled from the front handlebars with Shimano TX50 friction lever | Shimano Deore V brake, controlled from the front handlebars with Shimano TX50 friction lever | Shimano Deore V brake, controlled from the front handlebars with Suntour friction lever |
| Brake Levers | Shimano V brake, incorporated into STI levers | Shimano V brake, incorporated into STI levers | Avid FR5 | Avid FR5 |
| Front Hub | Orbit tandem large flange, cartridge bearing | Shimano HF08 large flange tandem 48 hole | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD | Shimano HF08 large flange tandem, 145mm OLD, 48 hole, 6 bolt disc | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings, 6 bolt disc, 145mm OLD | Hope Pro II EVO tandem, large flange, 40 hole, stainless steel cartridge bearings, 6 bolt disc, 145mm OLD |
| Rims | Alex DH19, triple box section, eyeletted | Alex DH19, triple box section, eyeletted | Alex DH19, triple box section, eyeletted | Alex DH19, triple box section, eyeletted |
| Spokes | Tandem double butted stainless steel | DT Swiss Alpine III triple butted stainless | DT Swiss Alpine III triple butted stainless | DT Swiss Alpine III triple butted stainless |
| Tyres | Schwalbe Marathon, 26 x 1.5" or 700 x 32c | Schwalbe Marathon Dureme Tandem, 26 x 2.0" | Schwalbe Marathon, 26 x 1.5" or 700 x 32c | Schwalbe Marathon, 26 x 1.5" or 700 x 32c |
| Headset | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup | Tange Thunda 1 1/8", reinforced bottom cup |
| Stem (Pilot) | Black alloy NVO adjustable | Black alloy NVO adjustable | Black alloy NVO adjustable | Black alloy NVO adjustable |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm | Orbit adjustable, 160mm to 200mm |
| Handlebars (Pilot) | Black butted alloy riser, 25.4 clamp size | Black butted alloy riser, 25.4 clamp size | Black butted alloy riser, 31.8 clamp size | Black butted alloy riser, 31.8 clamp size |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser | Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser |
| Saddle (Pilot) | Velo Plush comfort touring | Brooks B17 leather gents | Serfas Tegu mens | Serfas Tegu mens |
| Saddle (Stoker) | Velo Plush comfort touring | Brooks B17 leather ladies | Velo plush comfort touring | Velo plush comfort touring |
| Seatpost (Pilot) | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 | Black alloy, 400mm x 30.9 |
| Seatpost (Stoker) | Black Kalloy 350mm x 30.9 suspension | Black Kalloy 350mm x 30.9 suspension | Black Kalloy 350mm x 30.9 suspension | Cane Creek Thudbuster ST 30.9 suspension |
| Grips (Pilot) | Velo Ergonomic grip | Ergon GP5 integrated grip & bar ends | Ergon GP5 with integrated bar ends | Ergon GP5 with integrated bar ends |
| Grips (Stoker) | Velo black cork bar tape | Velo black cork bar tape | Velo black cork bar tape with under bar gel | Velo black cork bar tape with under bar gel |
| Panner Rack (Front) | Tubus Tara | |||
| Panner Rack (Rear) | Black alloy hollow 3 leg touring | Tubus Cargo | Tubus Cargo | Tubus Cargo |
| Bottle Cages | 2 alloy | 3 alloy | 2 alloy | 2 alloy |
| Mudguards | Silver with stainless steel fittings | Silver with stainless steel fittings | Silver with stainless steel fittings | Silver with stainless steel fittings |
| Extras | ||||
